Ubiquiti UniFi Access Starter Kit | UA-SK
Ubiquiti UniFi Access Starter Kit | UA-SK
Ubiquiti UniFi Access Starter Kit | UA-SK

Ubiquiti UniFi Access Starter Kit | UA-SK

Product Description

UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business.

Compatible with most Electric Bolts/Strikes and Magnetic Locks, the UniFi Access Starter Kit is easily installed with minimal effort and offers the convenience of the UniFi Access Controller, which allows you to easily manage users, visitors, schedules, and access policies.

The UniFi Access Starter kit is powered by native PoE technology, PoE Switch is not included

Contents:

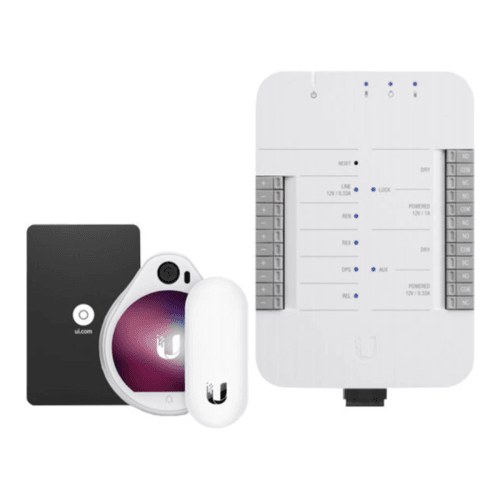

  • 1x UniFi Access Hub
  • 1x UniFi Access Reader Pro
  • 1x UniFi Access Reader Lite
  • 1x UniFi Access Card (20 count)



    Specification

    UDIM-AT
    Dimensions 190 x 126 x 33 mm
    (7.48 x 4.96 x 1.29"")
    Weight 457 g
    (16.12 oz)
    Enclosure Characteristics Plastic Enclosure with Metal Mount Plate
    Mounting Options DIN Rail
    Networking Interface (4) 1 Gbps Ethernet
    Max. Power Consumption 40W
    Power Method 802.3bt PoE
    Input Relays REX - Request to Exit
    REN - Request to Enter
    REL - Remote Release
    DPS - Door Position Sensor
    Dry Output Relay
    Lock
    Aux

    Rated 30VDC, up to 1A
    Rated 30VDC, up to 1A
    Powered Output Relay
    Lock
    Aux
    Line

    12VDC, up to 1A
    12VDC, up to 0.33A
    12VDC, up to 0.33A
    LEDs (1) System, (3) PoE Out, (4) Input
    (2) Output Relays, (1) 12VDC Out
    Buttons Terminal Blocks, Reset
    Operating Temperature 0 to 40° C (32 to 104° F)
    Operating Humidity 5 - 90% Noncondensing
    Certifications CE, FCC, IC


    UA-PRO
    Dimensions 73.40 x 62.28 x 26.55 mm
    (2.89 x 2.45 x 1.05")
    Networking Interface 85 g
    (2.99 oz)
    Mounting Options Wall-Mount or Alloy Clamp Holder
    Networking Interface 10/100 Mbps Ethernet
    Camera Viewing Angle 147.5° ± 3°
    Max. Power Consumption 8.3W
    Power Method 802.3af PoE
    Button (1) Reset
    IP Rating IP54
    LEDs Blue, White
    Connectivity Ethernet, BLE 4.2
    Operating Temperature -10 to 40° C
    (14 to 104° F)
    Operating Humidity 5 to 90% Noncondensing
    Certifications CE, FCC, IC



    NFC
    Frequency 13.56 MHz
    Read Range <30 mm
    Standards ISO 14443A, 14443B, 15693
    Technology NFC Tag 1, 2, 3, 4, 5
    MIFARE Classic
    MIFARE Plus
    MIFARE Ultralight
    MIFARE DESFire EV1/EV2



    UA-LITE
    Dimensions 94.91 x 40.00 x 31.10 mm
    (3.74 x 1.57 x 1.22")
    Weight 65 g
    (2.29 oz)
    Mounting Options Wall-Mount
    Networking Interface 10/100 Mbps Ethernet
    Max. Power Consumption 6W
    Power Method 802.3af PoE
    IP Rating IP54
    Button (1) Reset
    LEDs White/Blue
    Connectivity Ethernet, BLE 4.1
    Operating Temperature -40 to 40° C
    (-40 to 104° F)
    Operating Humidity 5 to 90% Noncondensing
    Certifications CE, FCC, IC



    NFC
    Frequency 13.56 MHz
    Read Range <30 mm
    Standards ISO 14443A, 14443B, 15693
    Technology NFC Tag 1, 2, 3, 4, 5
    MIFARE Classic
    MIFARE Plus
    MIFARE Ultralight
    MIFARE DESFire EV1/EV2



    UA-CARD
    Dimensions 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.033")
    Weight 5 g (0.18 oz)
    Format ISO 7810 ID-1



    NFC
    Frequency 13.56 MHz
    Technology ISO/IEC 14443 Type A
    MIFARE DESFire EV2
    UniFi Access Proprietary Security
    Protocol



    Downloads
