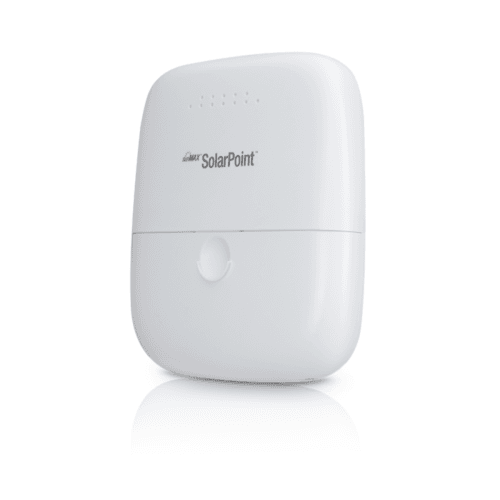

Ubiquiti SunMAX SolarPoint 24V 40W Outdoor 4 PoE Controller | SM-SP-40
Ubiquiti SunMAX SolarPoint 24V 40W Outdoor 4 PoE Controller | SM-SP-40
Ubiquiti SunMAX SolarPoint 24V 40W Outdoor 4 PoE Controller | SM-SP-40

Ubiquiti SunMAX SolarPoint 24V 40W Outdoor 4 PoE Controller | SM-SP-40

Product Description

SunMAX™ SolarPoint™ is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.



Product Features

  • Indoor and Outdoor use
  • PV Panel Input 10 – 60V
  • 4-port 24V PoE output 10/100 switch
  • 24V DC-Out Terminal
  • Max output power 40W
  • External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)



    Specification

    Dimensions 202 x 186 x 50 mm
    (7.95 x 7.32 x 1.97")
    Weight 650 g
    (1.43 lb)
    Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use
    Max. Power Consumption 2W
    Networking Interface (4) 10/100 Fast Ethernet Ports
    Management Interface Ethernet
    Wi-Fi (2.4 GHz)
    Button Reset
    LEDs System, Output
    Power Source PV Panel (H4 Connectors)
    PV Input Voltage Range 10 - 60V
    (Reverse Protection, Surge Protection)
    Maximum Open Circuit Voltage 60V
    PV Maximum Current 10A
    PV Power Control MPPT
    Output Interfaces 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
    24VDC Terminal Block
    Output Voltage Battery Voltage Limited to 24V
    (Surge Protection)
    Maximum Power Output PoE: 17W
    DC Out: 24W
    Total: 40W Max.
    Battery Type 24V SLA, AGM, Gel lead battery
    Absorption Voltage Steps 27.4V, 28.2V, 29.1V, 30V
    Float Charge Voltage 95% of Absorption Voltage
    Max. Charge Current 7A
    Under Voltage Protection 22 – 23.6V Software Configurable
    22V Hardware Protection
    Two Priority Levels for Output Disable
    Operating Temperature -20 to 50° C
    (-4 to 122° F)
    Operating Humidity IPx4
    Certifications FCC, IC, CE

    Downloads
