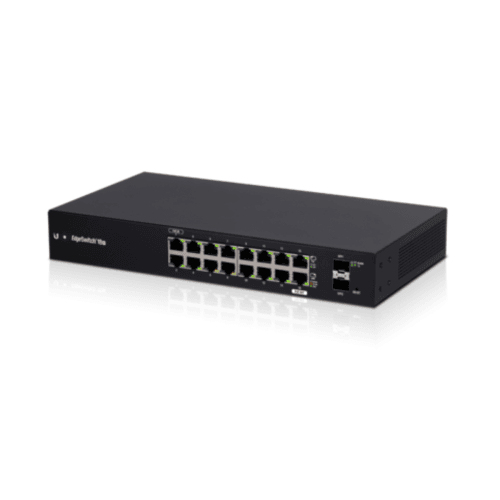

Ubiquiti EdgeSwitch 16 Port Gigabit 2SFP PoE Input | ES-18X
Ubiquiti EdgeSwitch 16 Port Gigabit 2SFP PoE Input | ES-18X
Ubiquiti EdgeSwitch 16 Port Gigabit 2SFP PoE Input | ES-18X

Ubiquiti EdgeSwitch 16 Port Gigabit 2SFP PoE Input | ES-18X

Product Description

Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti Networks® EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Product Features

  • (12) Gigabit SFP Ports
  • (4) Gigabit RJ45 Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 16 Gbps
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
  • Maximum AC Power Consumption: 56W
  • Rackmountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)



Specification

Dimensions 443 x 221 x 43 mm
(17.44 x 8.70 x 1.69")
Weight
Rack-Mount Brackets
Included Rack-Mount Brackets Excluded

2.68 kg (5.91 lb)
2.59 kg (5.71 lb)
Total Non-Blocking Line Rate 16 Gbps
Max. AC Power Consumption 56W
Power Method
AC
DC

100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply AC/DC, Internal, 56W DC
Supported Voltage Range 100 to 240VAC 25 to 16VDC
LEDs Per Data Port Speed/Link/Activity
Networking Interfaces (8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Rackmount Yes, 1U High
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC


    Downloads



    Ubiquiti 1.25G UFiber Single Mode Module | UF-GP-B+


    Product Inquiry

    Please send an email to sales@switchcom.co.za for pricing.

    Product Description

    Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti Networks® EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

    Product Features

    • (12) Gigabit SFP Ports
    • (4) Gigabit RJ45 Ports
    • (1) Serial Console Port
    • Non-Blocking Throughput: 16 Gbps
    • Switching Capacity: 32 Gbps
    • Forwarding Rate: 23.81 Mpps
    • Maximum AC Power Consumption: 56W
    • Rackmountable with Rack-Mount Brackets (Included)
    • DC Input Option (Redundant or Stand-Alone)



    Specification

    Dimensions 443 x 221 x 43 mm
    (17.44 x 8.70 x 1.69")
    Weight
    Rack-Mount Brackets
    Included Rack-Mount Brackets Excluded

    2.68 kg (5.91 lb)
    2.59 kg (5.71 lb)
    Total Non-Blocking Line Rate 16 Gbps
    Max. AC Power Consumption 56W
    Power Method
    AC
    DC

    100-240VAC/50-60 Hz, Universal Input
    DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
    Power Supply AC/DC, Internal, 56W DC
    Supported Voltage Range 100 to 240VAC 25 to 16VDC
    LEDs Per Data Port Speed/Link/Activity
    Networking Interfaces (8) 100/1000 Mbps SFP Ethernet Ports
    (4) 1000 Mbps SFP Ethernet Ports
    (4) 10/100/1000 Mbps RJ45 Ethernet Ports
    Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
    Rackmount Yes, 1U High
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Shock and Vibration ETSI300-019-1.4 Standard
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC


      Downloads



      Ubiquiti 1.25G UFiber Single Mode Module | UF-GP-B+


      Product Inquiry

      Please send an email to sales@switchcom.co.za for pricing.
