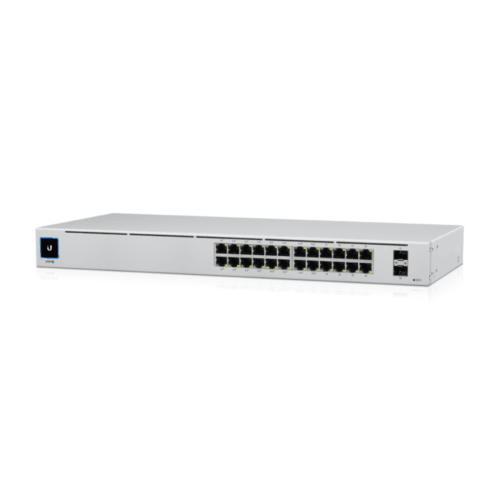

Ubiquiti 24 Port Gigabit 2SFP Managed UniFi Switch | USW-24
Ubiquiti 24 Port Gigabit 2SFP Managed UniFi Switch | USW-24
Ubiquiti 24 Port Gigabit 2SFP Managed UniFi Switch | USW-24

Ubiquiti 24 Port Gigabit 2SFP Managed UniFi Switch | USW-24

Product Description

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.


Product Features

  • (24) Gigabit Ethernet Ports including (16) 802.3at PoE+
  • (2) 1G SFP Ports
  • 1.3" touch LCM
  • Managed by UniFi Controller
  • 120W Power supply



      Specifications

      USW-24-POE GEN2
      Dimensions 442.4 x 200 x 43.7 mm
      (17.42 x 7.87 x 1.72")
      Weight
      With Brackets
      Without Brackets

      3.09 kg (6.81 lb)
      3.00 kg (6.61 lb)
      Interfaces
      Networking

      Management
      (24) 10/100/1000 RJ45 Ports
      (2) 1G SFP Ethernet Ports

      Ethernet In-Band
      Total Non-Blocking Throughput 26 Gbps
      Switching Capacity 52 Gbps
      Forwarding Rate 38.69 Mpps
      Power Method 100-240VAC/50-60 Hz, Universal Input
      Power Supply AC/DC, Internal, 120W
      Supported Voltage Range 100 to 240VAC
      Max. Power Consumption (Excluding PoE Output) 25W
      LEDs
      RJ45 Data Ports
      SFP Data Ports

      PoE; Speed/Link/Activity
      Link/Activity
      ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
      Shock and Vibration ETSI300-019-1.4 Standard
      Operating Temperature -5 to 40° C (23 to 104° F)
      Operating Humidity 10 to 90% Noncondensing
      Certifications CE, FCC, IC
      POE
      Total Available PoE 95W
      PoE Interfaces Ports 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
      Max. PoE Wattage per Port by PSE
      802.3at

      32W
      Voltage Range 802.3af Mode 44-57V
      Voltage Range 802.3at Mode 50-57V





      Downloads



      Ubiquiti 1.25G UFiber Single Mode Module | UF-GP-B+



      Product Inquiry

      Please send an email to sales@switchcom.co.za for pricing.
