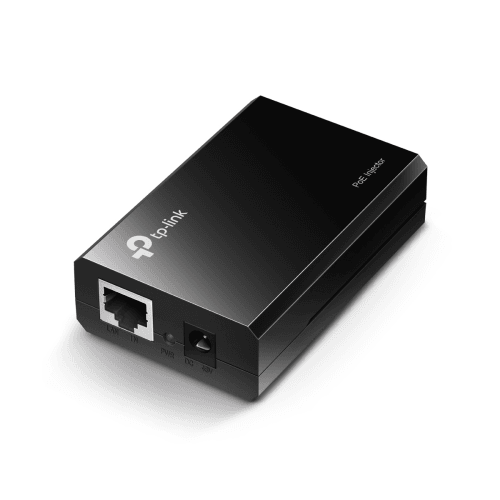

TP-Link PoE Injector TL-POE150S
TP-Link PoE Injector TL-POE150S
TP-Link PoE Injector TL-POE150S

TP-Link PoE Injector TL-POE150S

Product Description


The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Product Specifications

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration



HARDWARE FEATURES
Interface
  • 2 10/100/1000Mbps RJ45 Port
  • AUTO Negotiation/AUTO MDI/MDIX
  • 1 48VDC POWER INPUT PORT
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply
  • 15.4W (Max. 48VDC)
LED Indicator
  • PWR
Dimensions ( W x D x H )
  • 3.2 × 2.1 × 0.9 in.
  • (81 × 54 × 24 mm)



SOFTWARE FEATURES
Basic Function
  • Compatible With IEEE 802.3af Compliant PDs
  • Delivers Power Up To 100 Meters
  • Auto-Determine The Necessary Power Requirements



OTHERS
Certification
  • FCC, RoHS
Package Contents
  • Gigabit PoE Injector TL-POE150S
  • Power Adapter
  • RJ45 Cable
  • Installation Guide
Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
