MikroTik 5.8GHz 30dBi Precision Alignment Dish | MTAD-5G-30D3-PA
MikroTik 5.8GHz 30dBi Precision Alignment Dish | MTAD-5G-30D3-PA
MikroTik 5.8GHz 30dBi Precision Alignment Dish | MTAD-5G-30D3-PA

MikroTik 5.8GHz 30dBi Precision Alignment Dish | MTAD-5G-30D3-PA

Product Description

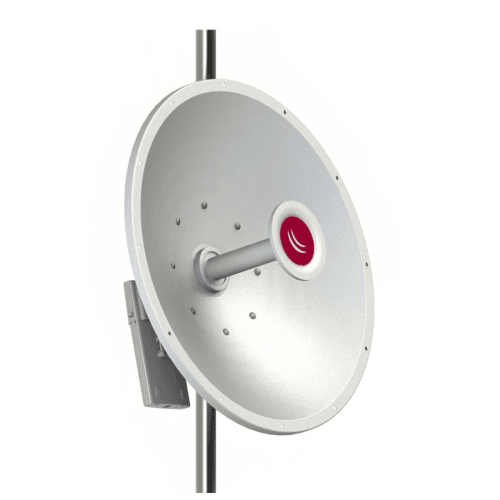

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accommodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Product specifications

Product code MTAD-5G-30D3-PA
Beamwidth +/-2.5 deg
Certification CE, ROHS
Connector 2x RP-SMA Female (outside thread)
Cross Polarization >40 dB
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Elevation adjustment range +/- 15 deg
Frequency Range 4.7-5.875 GHz
Front-to-Back Ratio >30 dB
Impedance 50 ohms
MTBF Approximately 200'000 hours at 25C
Outdoor Rating ETSI EN 300 019-2-4
Packaged size 73x73x20cm (29x29x8in)
Packaged weight 8.4 kg (18,5)
Polarization Vertical and Horizontal
Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)
Port to Port Isolation >40dB min
Power Rating 100W
Reflector Aluminum
Standards EN 302 326 DN1, DN2, DN3, DN5
Tested ambient temperature -50°C to 80°C(-49°F to 158°F)
VSWR ≤ 1.4 typ, ≤ 1.8 max
Weight 5.7kg (12.6 lbs)
Wind Load (125 mph) 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s
Wind Survivability 201kph (125mph)





Downloads



MikroTik 2.4GHz BaseBox 2 Outdoor Wireless CPE | RB912UAG-2HPnD-OUT



Product Inquiry

Please send an email to sales@switchcom.co.za for pricing.
