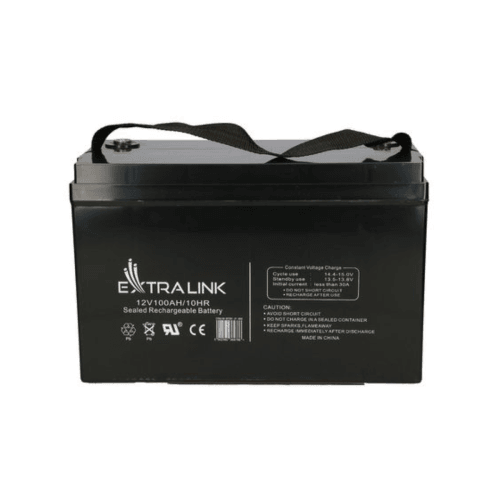

Extralink AGM 12V 100Ah | Battery | maintenance-free
Extralink AGM 12V 100Ah | Battery | maintenance-free
Extralink AGM 12V 100Ah | Battery | maintenance-free

Extralink AGM 12V 100Ah | Battery | maintenance-free

Purpose

Uninterruptable Power Supply (UPS), Electric Power System (EPS), emergency backup power supply, emergency light, railway signal, aircraft signal.
Alarm and security system, electronic apparatus and equipment, communication power supply, DC power supply, auto control system.

Technology

Extralink acid maintenance-free batteries, the electrolyte is trapped in the separator with glass mat. Type: sealed lead-acid batteries, with safety valve.


SPECIFICATION

Features / filters
Output voltage 12V
Battery capacity 100 Ah
Battery type Battery


Basic technical parameters
Construction of the battery
Element Material
Positive plate Lead dioxide
Negative plate Lead
Container ABS
Safety valve Gum
Contact Copper
Separator Fiberglass
Electrolyte Sulphuric acid
Characteristic
Nominal voltage 12 V
Nominal capacity 100 Ah
Internal resistance <25 m Ω
Cyclic life 600 times
Battery capacity by temperature (20 h) 25 ° C (77 ° F) 80%
Landing Initial charge current less than 5.4 A
Voltage 14.6-15.0 V

Downloads



Algcom 4.9-6.425Ghz| 18dBi | Front-to-back ratio: >40dB | Beamwidth: 21.3° | SH-5800-18-30-D



Product Inquiry

 Please send an email to sales@switchcom.co.za for pricing.

    Purpose

    Uninterruptable Power Supply (UPS), Electric Power System (EPS), emergency backup power supply, emergency light, railway signal, aircraft signal.
    Alarm and security system, electronic apparatus and equipment, communication power supply, DC power supply, auto control system.

    Technology

    Extralink acid maintenance-free batteries, the electrolyte is trapped in the separator with glass mat. Type: sealed lead-acid batteries, with safety valve.


    SPECIFICATION

    Features / filters
    Output voltage 12V
    Battery capacity 100 Ah
    Battery type Battery


    Basic technical parameters
    Construction of the battery
    Element Material
    Positive plate Lead dioxide
    Negative plate Lead
    Container ABS
    Safety valve Gum
    Contact Copper
    Separator Fiberglass
    Electrolyte Sulphuric acid
    Characteristic
    Nominal voltage 12 V
    Nominal capacity 100 Ah
    Internal resistance <25 m Ω
    Cyclic life 600 times
    Battery capacity by temperature (20 h) 25 ° C (77 ° F) 80%
    Landing Initial charge current less than 5.4 A
    Voltage 14.6-15.0 V

    Downloads



    Algcom 4.9-6.425Ghz| 18dBi | Front-to-back ratio: >40dB | Beamwidth: 21.3° | SH-5800-18-30-D



    Product Inquiry

     Please send an email to sales@switchcom.co.za for pricing.
