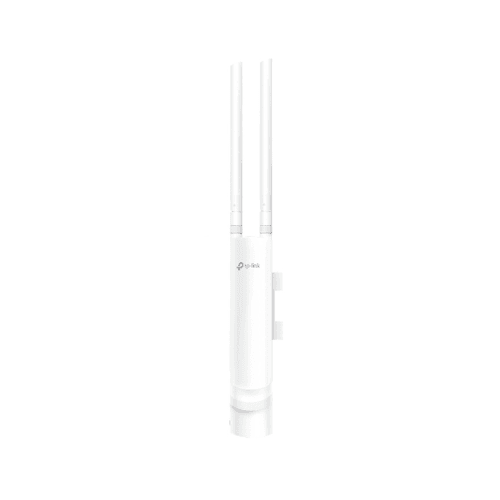

TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Product Description

A dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO2 technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands.

Product Specifications:

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps1 with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation



HARDWARE FEATURES
Interface
  • Gigabit Ethernet (RJ-45) Port x 1
  • (Support IEEE802.3af or passive PoE)
Physical Security Lock
  • Yes
Button
  • Reset
Power Supply
  • 802.3af/at PoE PoE or passive PoE
Power Consumption
  • 12.6W
Dimensions ( W x D x H )
  • 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Dimensions
  • 8.1 × 7.1 × 1.5 in
  • (206 × 182 × 37 mm)
Antenna Type
  • 3 Internal Omni
  • 2.4GHz: 4dBi
  • 5GHz: 5dBi
Mounting
  • Ceiling mount or wall mount (mounting kit included)



WIRELESS FEATURES
Wireless Standards
  • IEEE 802.11ac/n/g/b/a
Frequency
  • 2.4GHz and 5GHz
Signal Rate
  • 5GHz:Up to 867Mbps*
  • 2.4GHz:Up to 450Mbps*
Wireless Functions
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming
  • Band Steering
  • Load Balance
  • MU-MIMO*
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
Transmission Power
  • ≤24dBm(2.4GHz)
  • ≤22dBm(5GHz)



MANAGEMENT
Omada App
  • Yes
Centralized Management
  • • Omada Cloud-Based Controller
  • • Omada Hardware Controller (OC300)
  • • Omada Hardware Controller (OC200)
  • • Omada Software Controller
Cloud Access
  • Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
  • Yes
LED ON/OFF Control
  • Yes
Management MAC Access Control
  • Yes
SNMP
  • v1,v2c
System Logging Local/Remote Syslog
  • Local/Remote Syslog
Telnet
  • Yes
SSH
  • Yes
Web-based Management
  • HTTP/HTTPS
L3 Management
  • Yes
Multi-site Management
  • Yes
Management VLAN
  • Yes



OTHERS
Certification
  • FCC, RoHS
Package Contents
  • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kit
  • Installation Guide
Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
