Product Description

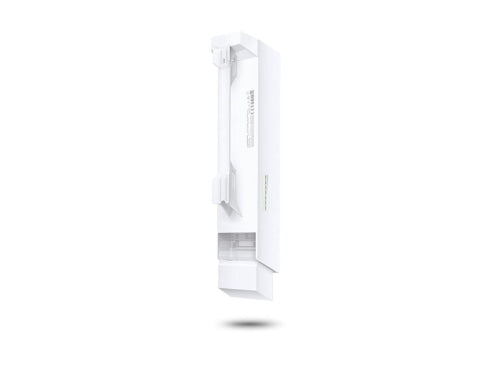

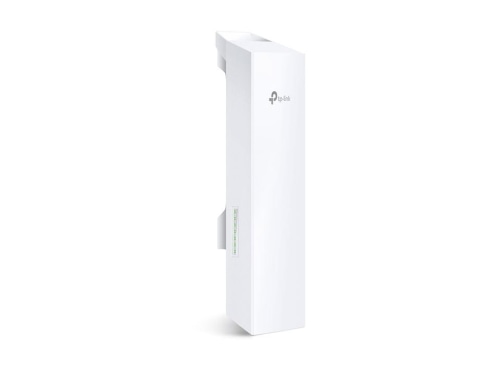

TP-LINK’s CPE220 is a 2.4GHz 300Mbps 12dBi Outdoor CPE. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
|
|
| Processor |
- Qualcomm Atheros 560MHz CPU, MIPS 74Kc
|
| Memory |
|

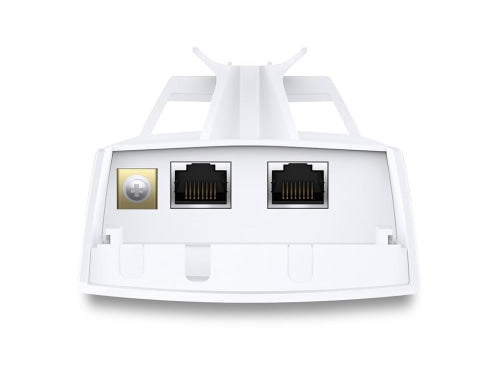

| Interface |
- 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
- 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 Grounding Terminal
- 1 Reset Button
|
| Power Supply |
- Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
|
| Power Consumption |
- 10.8 Watts Max
- Note: When deployed using Passive PoE, the power drawn from the power source will
- be higher by some amount depending on the length of the connecting cable.
|
| Dimensions ( W x D x H ) |
- 11×3.1×2.1 inch (276×79×60 mm)
|
| Antenna Type |
- Built-in 12dBi 2x2 Dual-polarized Directional Antenna
- Beam Width: 60° (H-Plane) / 30° (E-Plane)
- Note: For more details, please refer to datasheet
|
| Protection |
- 15KV ESD Protection
- 6KV Lightning Protection
|
| Enclosure |
- Outdoor ASA stabilized plastic material
- IPX5 waterproof Certification
|
|
|
| Wireless Standards |
- IEEE 802.11b/g/n (with Pharos MAXtream disabled)
|
| Proprietary Protocol |
- TDMA Mode (with Pharos MAXtream enabled)
|
| Wireless Speeds |
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
|
| Frequency |
- 2.4~2.483GHz
- Note: Available operating frequency may vary depending on the limitations
- of the countries or regions in which the device is used.
|
| Transmission Power |
- 30dBm/1000mw (Adjustable power by 1dBm)
- Note: Maximum transmission power may vary across different channels depending
- on the limitations of the countries or regions in which the device is used.
|
|
|
| Wireless Configurations |
- Pharos MAXtream TDMA Technology
- 802.11b/g/n Modes
- Selectable Channel Width: 5/10/20/40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- > Beacon Interval/RTS Threshold/Fragmentation
- >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
|
| Management |
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
|
| System Tools |
- Wireless Signal Quality Indicators:
- Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
|
| System-level Optimizations |
- Optimized IGMP Snooping/Proxy for multicast applications
- Hardware watch dog
|
|
|
| Dimensions(W x D x H) |
|
| Interfaces |
- 1 AC Jack with Earth Ground
- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
|
| Button |
|
| Power Status LEDs |
|
| Input |
|
| Output |
- 24VDC, 1.0A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
|
| Efficiency |
|
| Certifications |
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
|
|
|
| Certification |
|
| Package Contents |
- Outdoor Wireless CPE
- 24V 1A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
|
| System Requirements |
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
- MAC OS, NetWare, UNIX or Linux.
- Note: We recommend you to use one of following Web browsers for an improved user
- experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
|
| Environment |
- Operating Temperature: -30°C~70°C (-22℉~158℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
|
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
