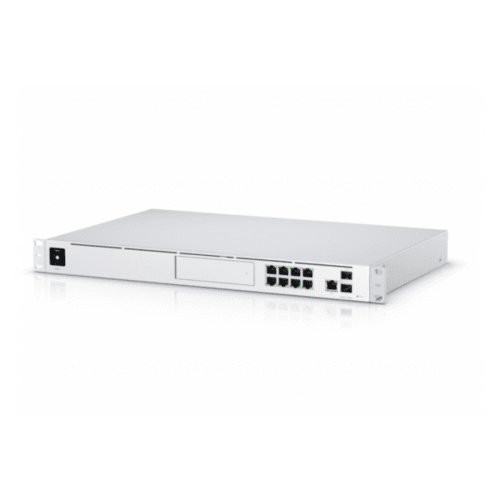

Ubiquiti UniFi Dream Machine Pro 8 Port Gigabit Switch with 2SFP+ | UDM-PRO
- Product SKU: UDM-PRO
- Category: All, Categories, Networking Devices, Ubiquiti Networks, Wireless & Wired Products, Wireless Networking
Product Description
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
Product Features
- All-in-one 1U rack appliance for small to medium sized businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor
Specifications
DIMENSIONS
- Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24") - Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
-
(2) Rackmount Brackets
-
(8) Bracket Screws
-
(4) Mounting Screws
-
(4) Cage Nuts
-
(1) Security Screw
-
(4) 2.5" HDD Screws
-
Power Cord
-
(4) Rubber Feet
TECHNICAL SPECIFICATIONS
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
- Ethernet In-Band
- (1) Bluetooth BLE
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- CE, FCC, IC
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
Product Description
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
Product Features
- All-in-one 1U rack appliance for small to medium sized businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor
Specifications
DIMENSIONS
- Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24") - Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
-
(2) Rackmount Brackets
-
(8) Bracket Screws
-
(4) Mounting Screws
-
(4) Cage Nuts
-
(1) Security Screw
-
(4) 2.5" HDD Screws
-
Power Cord
-
(4) Rubber Feet
TECHNICAL SPECIFICATIONS
Interfaces- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
- Ethernet In-Band
- (1) Bluetooth BLE
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- CE, FCC, IC
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
