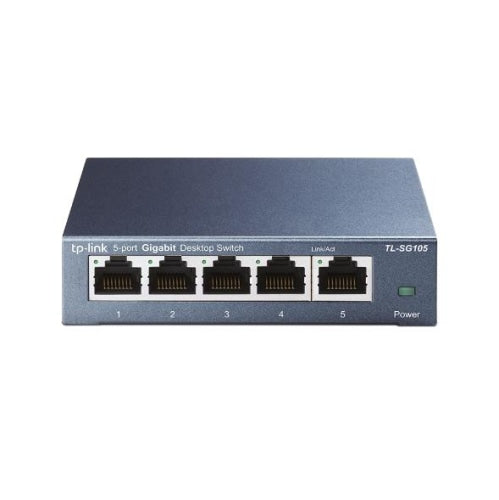

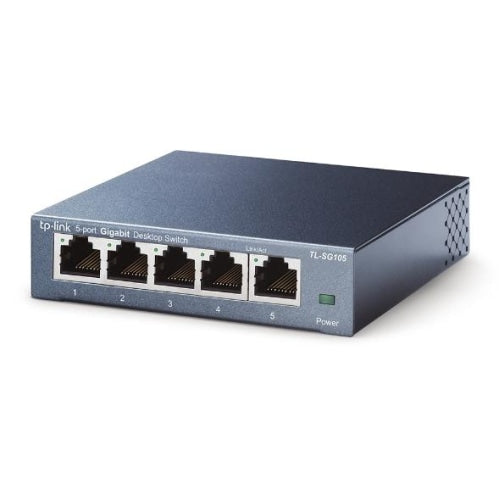

TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105
TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105
TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105
TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105
TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105

TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105

Product Description

The TP-LINK 5-Port Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.



HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface
  • 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
  • Fanless
External Power Supply
  • External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator
  • System Power
  • Link, Speed and activity indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
  • 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max Power Consumption
  • 2.43W(220V/50Hz)
Max Heat Dissipation
  • 8.29BTU/h



PERFORMANCE
Packet Forwarding Rate
  • 7.4Mpps
MAC Address Table
  • 2K
Packet Buffer Memory
  • 1Mb
Jumbo Frame
  • 16KB



SOFTWARE FEATURES
Advanced Features
  • Green Technology, saving power up to 84%
  • 802.3X Flow Control
  • 802.1P/DSCP QoS (for V2 and later version)
  • IGMP Snooping
Transfer Method
  • Store and Forward



OTHERS
Certification
  • CE, FCC, RoHS
Package Contents
  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5%~90% non-condensing



Downloads
