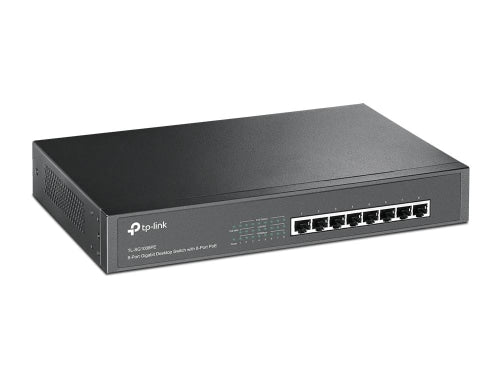

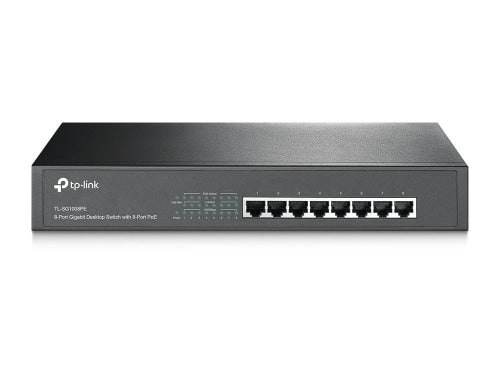

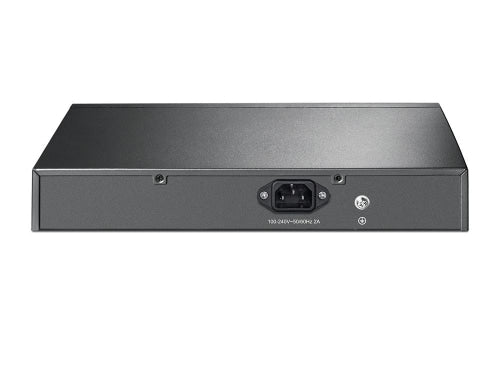

TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE
TP-Link

TP-Link 8-Port PoE+ Gigabit Rackmount Switch | TL-SG1008PE

Add Your Review

Product Description

The TP-Link TL-SG1008PE is an 8-Port Gigabit Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.



HARDWARE FEATURES
Interface
  • 8 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
  • 1
Power Supply
  • 100-240VAC, 50/60Hz
PoE+ Ports(RJ45)
  • Standard: 802.3at/af (30W)
  • PoE+ Ports: 8 Ports
  • Total PoE Budget: 126W
Backbound Bandwidth
  • 16Gbps
Mac Address Table
  • 4K
Buffer Size
  • 1.5Mbits
Dimensions ( W x D x H )
  • 11.6 × 7.1 × 1.7 in.
  • (294 × 180 × 44 mm)
Mounting
  • 13" and 19" standard rack mountable
Max Power Consumption
  • 9.9W(no PoE load)
  • 144.4W(with 126W PoE load)
Max Heat Dissipation
  • 33.7BTU/h(no PD load)
  • 492.6BTU/h(with 126W PD load)



SOFTWARE FEATURES
Advanced Features
  • Compatible with IEEE 802.3af/at compliant PoE devices
  • Priority PoE power supply
  • MAC address auto-learning and auto-aging
  • IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
Transfer Method
  • Store-And-Forward



OTHERS
Certification
  • FCC, RoHS
Package Contents
  • TL-SG1008PE
  • Power cord
  • Installation guide
  • Mounting bracket for 19" rack
  • Rubber feet
Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing



Downloads
