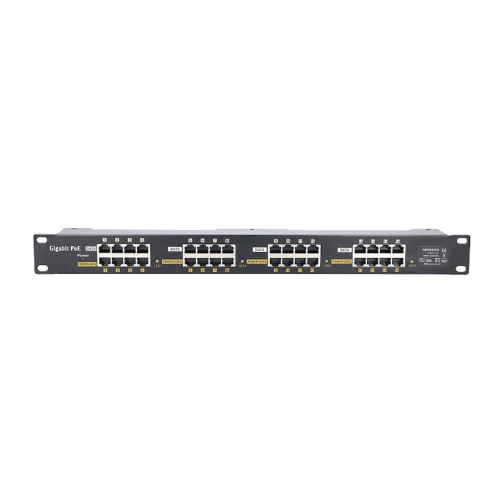

Extralink 16 Port Gigabit POE Injector
Extralink 16 Port Gigabit POE Injector
Extralink 16 Port Gigabit POE Injector

Extralink 16 Port Gigabit POE Injector

Product Description

The 16 port gigabit PoE panel is using 10/100/1000M Ethernet. The upper Rj45 sockets is for  “LAN/Switch/PC” 1/2&3/6 or 4/5&7/8 are transmitting data. The under RJ45(power+data) socket is to deliver data and power: Mode A-1/2&3/6  Mode B-4/5&7/8. Each socket provides protection against short overflow (current protection 650mA).
There commended formula for ac/dc power converter is: 5W per RJ45 set (1 set = 2 x RJ45sockets).
For example, 16 x 15W = 240W for 16 port Passive PoE panel.
The configuration size of panel is:1U (height), 19” (width) and 52mm (thickness).



Features

  • 16 x  10/100/1000M Gigabit Ethernet ports
  • Flexible power (DC 18-57V)
  • For 1'U high standard rack mount
  • 5 LED status indicators
  • Use with any Ethernet switch
  • 650ma automatic resettable fuse on each port
  • Support IEEE 802.3at or 802.3af devices
  • Mode A operation-minus on pins 1/2, plus on 3/6 (802.3af/at)
  • Mode B operation-minus on pins 7/8, plus on 4/5 (Mikrotik, UBNT)
  • Ideal for IP cameras, VOIP phone, WiFi Access Points





Specifications

Color :

Black

Input :

100-240V AC 50/60Hz

Output :

18 TO 57V

Data :

1/2 & 3/6 & 4/5 & 7/8

Power :

3/6+ & 1/2-, 4/5+ & 7/8-

Weight :

1.3kg

Dimensions :

482.6mm x 44.3mm x 52mm

Case of material :

Metal work material

Ethernet Cable :

TIA/EIA 568 Cat. 5

Data rate :

10/100/1000Mbps

Connector :

RJ-45

Operating Temperature :

0°C ~ 40°C

Storage Temperature :

-40°C~+70°C

Operating Humidity :

10%~80% RH

Storage Humidity :

5%~90%RH

Certification :

CE FCC



Downloads



Extralink 16 Port Gigabit POE Injector



Product Inquiry


Please send an email to sales@switchcom.co.za for pricing.
