Product Description

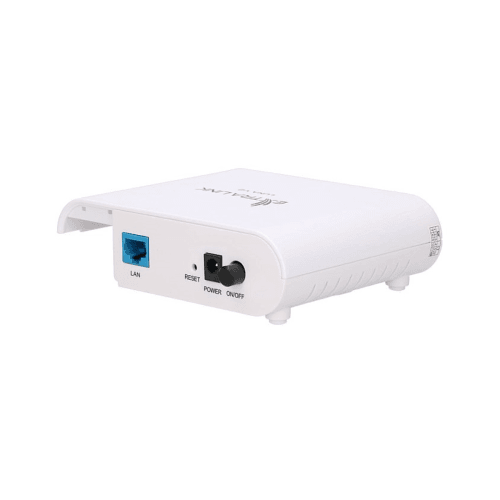

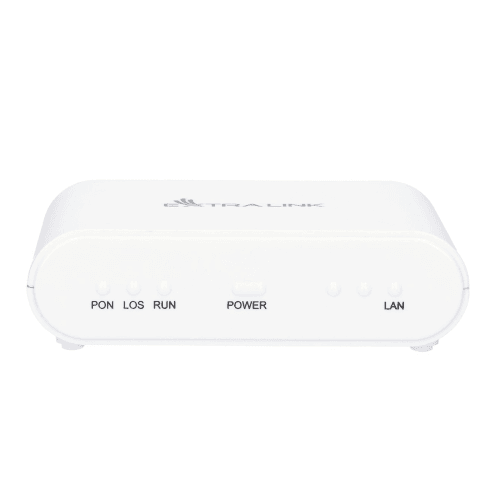

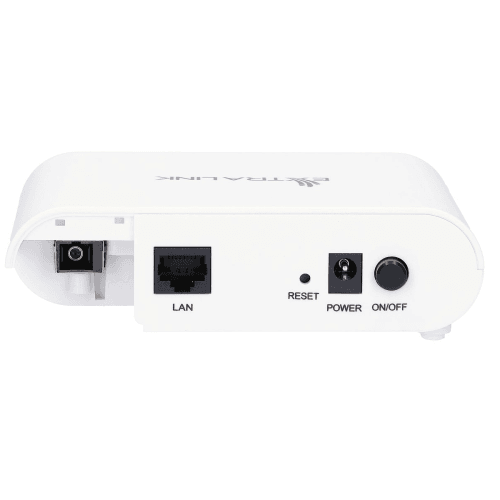

JOWISZ 1 GE high speed data transmission client
Extralink Jowisz ONU EPON 1 GE is a fibre optic client device operating in EPON technology. It has one PON port and one Gigabit Ethernet port. Jupiter is compliant with the IEEE802.3ah standard. It allows to build a passive optical network at home or in the company.

EPON device with uplink PON port
Extralink 1 GE ONU EPON products are fully compliant with IEEE 802.3-2005 and EPON (V2. 1) standards. Extralink's customer terminal can provide high speed data transmission services to customers. It has port uplink PON enabling conversion of fiber optic signal to a signal transmitted via a network cable. It is an effective and easy to manage solution.


Features

  • Compliant with IEEE802.3ah standard
  • Supporting Layer 2 switching service
  • Support for standard 802.1Q VLAN, VLAN conversion support
  • Filtering of frames
  • Support for 4094 VLAN (802.1Q)
  • Dynamic bandwidth allocation function (DBA)
  • QoS support, including e.g. traffic flow classification, priority marking, queue and dispatch, traffic shaping and control
  • Single ONU unit supporting up to 8 LLID
  • IGMP Snooping support
  • Loop detection in the network
  • Power failure alarm
  • Lightning protection support for power and service port

Specification

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
PON standard EPON
Wireless network standards None
USB port None
VoIP ports None


Interface
PON Port 1 PON port
1.25 Gbps
Ethernet (LAN) port 1 RJ45 port
10/100/1000 BaseTX
Power port 12 V DC input
Environmental specification
Power supply 12 V DC
Maximum energy consumption: 6 W
Environmental conditions Operating temperature: 0°C~55°C
Storage temperature: -30°C~60°C
Storage humidity: 10~90%, non-condensing





Downloads
