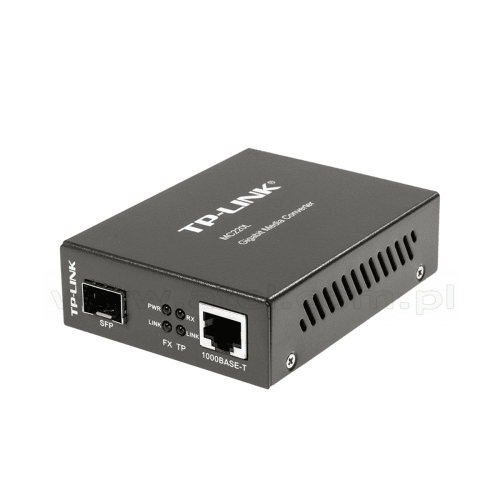

TP-Link Gigabit Ethernet Media Converter | TL-MC220L
TP-Link Gigabit Ethernet Media Converter | TL-MC220L

Product Description


The MC220L is a media converter designed to convert 1000BASE-SX/LX fibre to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module.

Product Specifications

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable



MEDIA CONVERTER & MODULE
Standards and Protocols
  • IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
Ports
  • 1 x Gigabit SFP port
  • 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length
  • Depends on the used SFP module
Network Media 1000BASE-X
  • Multi-mode/Single-mode SFP module
Network Media 1000BASE-T
  • UTP category 5, 5e, 6 cable (maxium 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators
  • PWR, Link/Act
Dimensions (W*D*H)
  • 3.7 x 2.9 x 1.1 in.
  • (94 x 73 x 27 mm)
Power Supply
  • External Power Adapter (9VDC/ 0.6A)
Max Power Consumption
  • 1.7 W
Safety & Emission
  • FCC, CE, RoHS
Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing



Product Inquiry

Please send an email to sales@switchcom.co.za for pricing.
